商品の詳細:
|
| 製品名: | 濁度センサー | 測定技術: | 赤外線二重ビーム散乱光 |
|---|---|---|---|
| 測定範囲: | 0.01〜4000ntu | 解決: | ±2％ |
| 正確さ: | 測定値の5.0％または0.3ntuのいずれか大きい方 | コミュニケーション: | RS485 modbus-rtu |
| 応答時間: | T90 ＜60S | 作業圧力: | ≤4bar |
| 動作温度: | 0〜45℃ | シェル素材: | 標準SS 316L |
| 保護グレード: | IP68 | ケーブル: | 10メートル |
| ハイライト: | Infrared turbidity sensor with self-cleaning,Turbidity analyzer 0.01-4000NTU range,Self-cleaning turbidity sensor with brush |
||

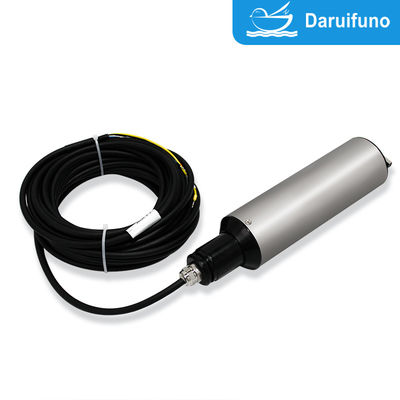

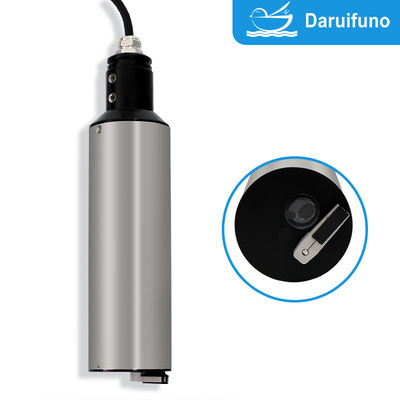

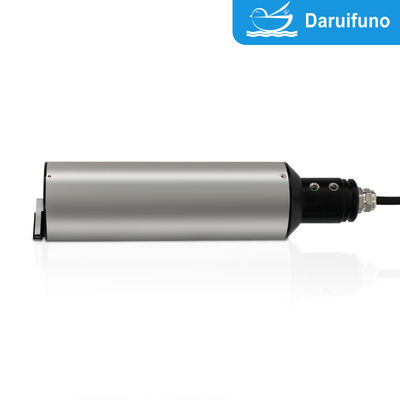

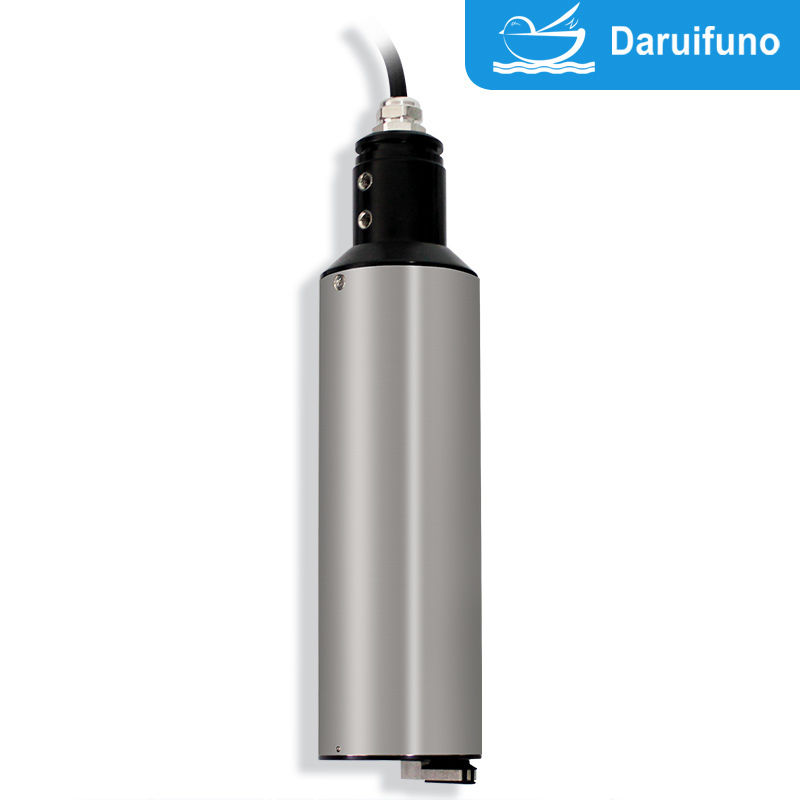

| Sensor Information | Infrared Turbidity Sensor |
|---|---|
| Model | OPTU311 (with brush) |
| Measuring Technology | Infrared scattering principle |
| Measuring Range | 0.01~4000NTU |
| Resolution | 0.01NTU |
| Accuracy | ±2% of measured value or ±0.1NTU (whichever is greater) |
| Communication | RS485 MODBUS-RTU |
| Response Time | T90 < 60s |
| Calibration Method | Multi-point calibration; factor correction |
| Working Pressure | ≤4Bar |
| Sample Flow Rate | No dependency |
| Cleaning Method | Equipped with cleaning brush, automatic cleaning under water |
| Working Temperature | 0~45°C (no freezing) |
| Storage Temperature | 0~60°C (no freezing) |
| Main Material | SUS 316L stainless steel (Titanium customized option) |
| Dimension | Φ60mm*L265mm |
| Mounting | Horizontal installation (special accessories required) |
| Protection Grade | IP68 |
| Power Supply | 9~24 V DC |
| Power Consumption | 1.5W |
| Weight | 800g |
| Cable | Standard 10 meters |
