Analog PH Electrode Suitable For Water Purification >5μS/Cm

Name: Analog PH Electrode Suitable For Water Purification >5μS/Cm
Brand: Suzhou Delfino Environmental Technology Co., Ltd.
SKU: ASP121E
Price: 137.00 USD
Availability: InStock

すべての製品

pH ORPの検光子
(48)

pH ORPのコントローラー
(39)

pH ORPセンサー
(90)

濁り度の検光子
(54)

分解された酸素の検光子
(32)

伝導性の検光子
(49)

懸浮固体分析機
(25)

COD分析機
(17)

塩素分析機
(21)

クロロフィル解析器
(21)

青緑の藻のテスター
(17)

アモニア分析機
(11)

ポータブル分析機
(2)

消毒剤分析機
(25)

多変数検光子
(3)

水質分析機
(32)

最もよいプロダクト

Analog PH Electrode Suitable For Water Purification >5μS/Cm

大画像 : Analog PH Electrode Suitable For Water Purification >5μS/Cm

商品の詳細:

起源の場所:	中国
ブランド名:	Daruifuno
証明:	CE, ISO
モデル番号:	ASP121E

お支払配送条件:

最小注文数量:	1
価格:	USD25-250
パッケージの詳細:	カートン
受渡し時間:	3〜10営業日
支払条件:	T/T、Western Union、MoneyGram
供給の能力:	1か月あたり10000セット

連絡先

Analog PH Electrode Suitable For Water Purification >5μS/Cm

説明

製品名:	PHセンサー	測定範囲:	0~14pH
ゼロ（e0）ph:	±0.25ph	スロップ％:	＞95％
作業圧力:	0-6bar	作業温度:	0～100℃
温度単位:	PT100,PT1000,NTC10K オーダーメイド	設置寸法:	PG13.5
テールリード:	積分または分割	ワイヤー:	標準的な5メートル
応用:	純水>5μs/cm
ハイライト:	Analog pH electrode for water purification , pH sensor with >5μS/cm compatibility , ORP sensor for purified water

Analog PH Electrode Suitable For Water Purification >5μS/Cm

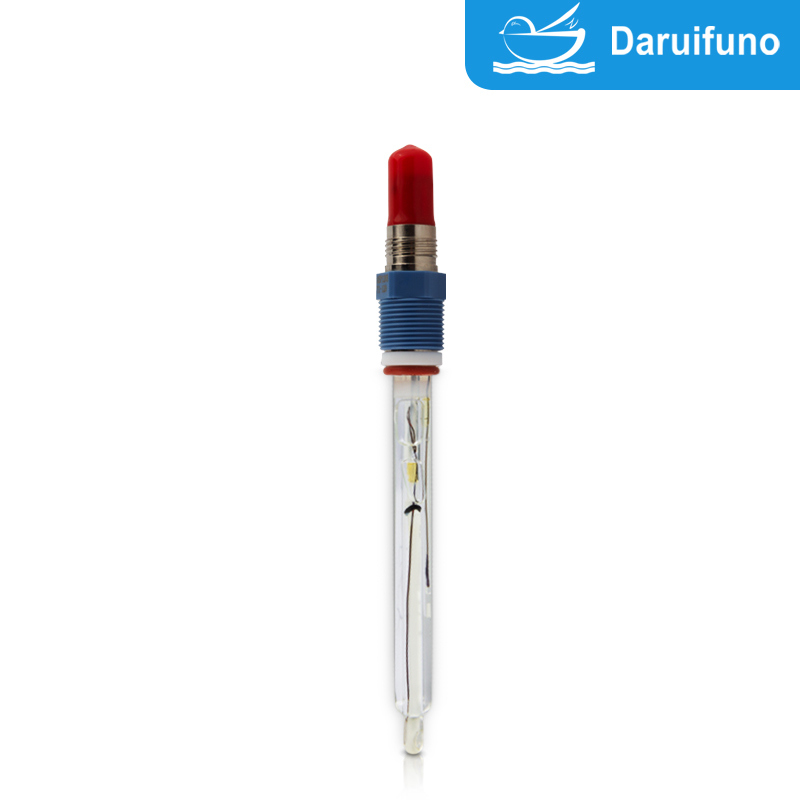

Daruifuno ASP121E Analog pH Sensor

The ASP121E pH sensor is a versatile and durable choice, engineered for a wide measuring range of 0 to 14 pH. It utilizes a low-impedance cylindrical glass membrane to deliver fast and stable readings.

Precision and Longevity

A key feature is its sophisticated Ag/AgCl reference system. This design incorporates a double salt bridge and a KCl gel electrolyte, significantly extending the sensor's lifespan and ensuring reliable performance in challenging environments where conventional single-junction electrodes often fail.

Built for Reliability and High Performance

Constructed with durability in mind, the electrode features a resilient glass body and a distinctive dot-shaped ceramic junction (frit), offering excellent resistance to chemical corrosion.

Operating Parameters

Standard Operation: 0°C to 80°C with pressures up to 6 bar
High-Temperature Capability: Up to 100°C for less than 60 minutes at pressures up to 3 bar
Customizable High-Temperature Model: Continuous use up to 100°C or short-term spikes up to 135°C (less than 60 minutes)

Key Technical Specifications

Sensitivity (Slope): Greater than 95%
Zero Point (E0): ±0.25 pH
Temperature Compensation: PT100, PT1000, or NTC10K sensors
Optimal Flow Rate: 0.001 m/s to 0.5 m/s
Physical Specifications: 12 mm diameter * 120 mm length (customizable)
Installation: Standard PG13.5 mounting thread
Wiring: Integral or split leads available

Model Specifications

Model	ASP120E	ASP121E	ASP122E	ASP123E	ASP124E
Measuring Object	PH
Measuring Range	0~14pH
Indicator Electrode	low impedance cylindrical glass membrane
Reference System	Ag/AgCl reference electrode, double salt bridge, KCl gel
Electrode Material	Glass+Dot-shaped ceramic hole	Glass+Dot-shaped ceramic hole	Glass+Dot-shaped ceramic hole	Glass+Porous tetrafluoro ring	Glass+ceramic sand core
Working Pressure	Medium and low temp environment: max. 0~6bar High temp environment: 0~3bar
Working Temp.	Medium and low temp. environment: 0~80℃, continuous work High temp. environment: 80~100℃, continuous work for less than 60 minutes Customzied as below : Medium and low temp. Env.: 0~100℃, continuous work High temp. Env.: 100~135℃, continuous work < 60 mins High temp. Env. work more than 40 times (clean water test env.)
Sample Flow Rate	0.5 m/s ≥ flow velocity ≥ 0.001 m/s
Zero (E0)	±0.25pH
SLOP%	＞95%
Temperature Unit	PT100, PT1000, NTC10K customized
Dimension	Standard: diameter 12mm/Length 120mm (customized)
Installation Thread	PG13.5
Tail Lead	Integral or split
Application	Strong acid and alkali	Normal temp. pure water >5μS/cm	Harsh industrial process*	Normal temp. desulfurization or viscous slurry	Hydrofluoric acid with concentration ≤4000ppm

Model	ASP125E	ASP126E	ASP127E	ASR120E	ASP128E
Measuring Object	PH	PH	PH	ORP	PH
Measuring Range	0~14pH	0~14pH	0~14pH	±2000mV	0~14pH
Indicator Electrode	low impedance cylindrical glass membrane	low impedance cylindrical glass membrane	low impedance cylindrical glass membrane	Platinum	glass membrane
Reference System	Ag/AgCl reference electrode, double salt bridge, KCl gel
Electrode Material	Glass+ceramic sand core
Working Pressure	Medium and low temp environment: max. 0~6bar High temp environment: 0~3bar			max. 0~6bar
Working Temp.	Medium and low temp. environment: 0~80℃, continuous work High temp. environment: 80~100℃, continuous work for less than 60 minutes Customzied as below : Medium and low temp. Env.: 0~100℃, continuous work High temp. Env.: 100~135℃, continuous work < 60 mins High temp. Env. work more than 40 times (clean water test env.)			-15~80℃, continuous work
Sample Flow Rate	0.5 m/s ≥ flow velocity ≥ 0.001 m/s
Zero (E0)	±0.25pH
SLOP%	＞95%
Temperature Unit	PT100, PT1000, NTC10K customized
Dimension	Standard: diameter 12mm/Length 120mm (customized)
Installation Thread	PG13.5
Tail Lead	Integral or split
Application	Strong acid and alkali	Harsh conditions &high pollution	Fermentation process	High temp. Industrial process	Low temp.

Features & Advantages

Large capacity reference for extended service life
Optional cleaning connector for underwater maintenance
Available with PTFE protective cover and self-cleaning interface
Self-cleaning function enhances stability, accuracy, and reliability
Reduces maintenance costs
Ideal for Pure Water >5μS/Cm

Mounting Flexibility

Sidewall Mounting: Ideal for large tanks and vessels
Top Flange Mounting: Perfect for sealed reactors
Pipe/Flow Cell Mounting: For in-line measurements
Submersible Mounting: For open tanks and channels
Manual Retractable Holder: Enables maintenance without process shutdown

Enhanced Durability with PTFE Sheath

The optional PTFE (Teflon) sheath features 3/4" NPT threads for easy attachment to mounting accessories, ensuring seamless integration across various applications.

Application For Pure Water >5μS/Cm
